Robot Hand Sews Silk

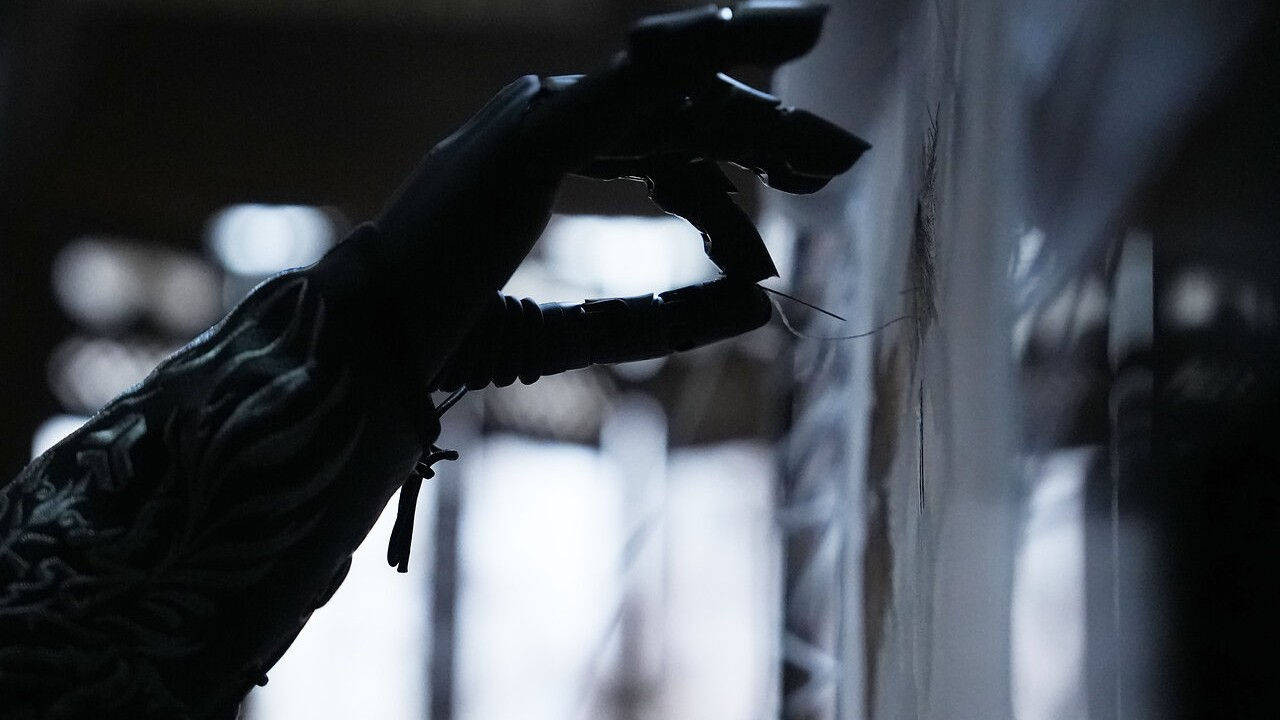

A Chinese robotics firm has taught its dexterous robot hand to sew silk. AGILINK's OmniHand 3 Ultra separated a silk thread, threaded a needle and made stitches in a demonstration of Suzhou embroidery. The hand learned the craft from the embroidery master Fu Xianghong, and AGILINK published the footage on its own channel.
Silk is a difficult test for a machine. The material bends and slips as pressure changes, so one finger has to tease strands apart while the others keep the thread taut. That mix of gentle force and close coordination is exactly where most robot grippers fall short.
The demonstration shows a capability, not a production line. AGILINK's clip follows the hand through the steps of Suzhou embroidery, from splitting silk to working stitches at a workshop frame. And the company frames the work as a milestone in touch and control rather than a completed commercial task.
The OmniHand 3 Ultra uses a direct drive design, with motors connected straight to each joint instead of running through tendons or gears. It carries 21 active degrees of freedom, close to the range of a human hand. Tactile sensing covers the fingertips, the finger pads and the palm, and vision based sensors at each fingertip read contact through changes in the surface the hand touches.
Silk leaves almost no rigid shape to grip. AGILINK says the fingertip, finger pad and palm sensing keeps the hand informed as it handles thin, deformable material. Changes in the contact surface are detected at each fingertip and fed back during the work.
Training combined two methods. AGILINK gathered teleoperation data, where a person guides the hand through the motion, and paired it with reinforcement learning. But the final task did not follow a fixed script, because the thread landed in a slightly different place each time, so the hand had to adapt its motion as it went.
The unit is built to human scale. It is about the size of a person's hand and weighs 630 grams. In the demonstration it split a main silk thread into 16 finer strands, stretched fabric across a hoop and worked its first stitches.
AGILINK also reports a manufacturing number. The company says it has shipped more than fifteen thousand dexterous hands. That figure is AGILINK's own claim and has not been independently confirmed, and no price for the OmniHand 3 Ultra appears in the material.
The setting is as telling as the hardware. Suzhou embroidery is a heritage craft from Jiangsu province, and its silk work has long been a benchmark for steady, delicate hand control. So a robot hand that can handle silk points to a wider class of jobs where machines must touch soft, shifting material without crushing or dropping it.
AGILINK is a spin off of the Chinese robotics company AgiBot, and dexterous hands have become one of the busiest corners of Chinese robotics work. A hand that can manage silk speaks to tasks well beyond embroidery. Electronics assembly, garment making and food handling all call for the same blend of care and precision.
The demonstration is a first step rather than a finished deployment. It shows one hand completing a learned sequence of delicate steps under controlled conditions. The open question is whether that control holds up outside a workshop, on a production line, where materials vary and speed matters.
AGILINK's OmniHand 3 Ultra completed Suzhou embroidery steps including splitting silk, threading a needle and stitching.
Silk is a hard test because it bends and slips as pressure changes, demanding fine force control and coordination.
The hand uses a direct drive design with 21 active degrees of freedom and tactile sensing across fingertips, finger pads and palm.
AGILINK says it has shipped more than fifteen thousand dexterous hands, a company claim that has not been independently confirmed.
The footage is a demonstration, not a production deployment, and no price has been disclosed.
Source: Interesting Engineering
